Exam - Fri 12, Nov 2021

Scientific Programming - Data Science Master @ University of Trento

Download exercises and solutions

Part A - Mexican Drug Wars

NOTICE: this part of the exam was ported to softpython website

There you can find a more curated version (notice it may be longer than here)

Drug cartels carried out a shocking wave of lethal attacks against hundreds of local elected officials and party candidates in Mexico during years 2007-2012, attempting to establish criminal governance regimes and conquer local governments, populations, and territories. This quickly forced Mexican authorities to deploy armored vehicles with heavy weapons to perform military operations within their own borders. You will analyze cartels attacks frequency and where they occurred.

Data sources:

  • Trejo, Guillermo; Ley, Sandra, 2019, “Replication Data for: High-Profile Criminal Violence. Why Drug Cartels Murder Government Officials and Party Candidates in Mexico”, https://doi.org/10.7910/DVN/VIXNNE, Harvard Dataverse, V1, UNF:6:BcqInKD9NBX3NkI48CdqpQ== [fileUNF] License: CC0 - “Public Domain Dedication”

  • Coscia, Michele and Viridiana Rios (2012). Knowing Where and How Criminal Organizations Operate Using Web Content. CIKM, 12 (October – November). https://www.michelecoscia.com/?page_id=1032

Open Jupyter and start editing this notebook exam-2021-11-12.ipynb

Attacks during elections

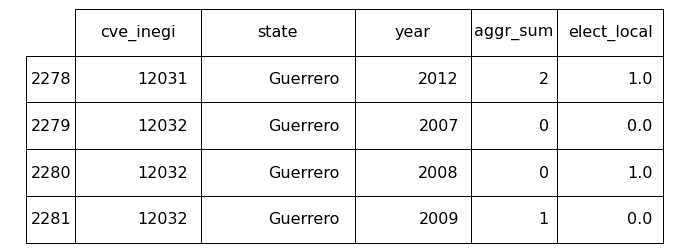

In the file Dataset_HighProfileCriminalViolence.tab are listed the number of attacks occurred to elected officials in Mexico from years 2007 to 2012. Focus only on columns cve_inegi, state, year, aggr_sum, elect_local:

../../../_images/exams_2021-11-12_solutions_exam-2021-11-12-sol_4_0.png
  • Municipalities where the attack occurred are identified by a 5 digits cve_inegi code: first two digits indicate the state, 3 last ones the town. NOTE: first file entries only have 4 digits as the leading zero is implied, take care of this case

  • aggr_sum: number of attacks occurred in a particular municipality / year.

  • elect_local: 1.0 if a local election occurred in the year of the attack (ignore other elect_*)

load_mexico

Extract Mexican state codes, names, the counts of attacks, and the years when local elections occurred, and RETURN a dictionary of dictionaries mapping two digit state codes as strings to the extracted info.

  • use csv.DictReader with delimiter='\t' and utf8 encoding (municipalities will look weird but we don’t use them)

  • use exactly 6 cells for attacks lists: assume all were carried out between 2007and 2012 included

  • DO NOT assume the years in rows repeat with a pattern, for example municipality 21132 has two successive 2012 years!

Show solution
[3]:
import csv

def load(filename):
    raise Exception('TODO IMPLEMENT ME !')

mexico_db = load('Dataset_HighProfileCriminalViolence.tab')
mexico_db

Complete expected output can be found in expected_mexico_db.py

EXERPT (note keys order doesn't matter):

{
  '08': {
              'attacks': [0, 5, 7, 12, 7, 2],
              'local_election_years': [2007, 2010],
              'state_code': '08',
              'state_name': 'Chihuahua'
             }
  '12': {
              'attacks': [4, 11, 11, 9, 3, 10],
              'local_election_years': [2008, 2011, 2012],
              'state_code': '12',
              'state_name': 'Guerrero'
             }
  .
  .
  .
}
[5]:
# TESTING
from pprint import pformat; from expected_mexico_db import expected_mexico_db
for sid in expected_mexico_db.keys():
    if sid not in mexico_db: print('\nERROR: MISSING state', sid); break
    for k in expected_mexico_db[sid]:
        if k not in mexico_db[sid]:
            print('\nERROR at state', sid,'\n\n   MISSING key:', k); break
        if expected_mexico_db[sid][k] != mexico_db[sid][k]:
            print('\nERROR at state', sid, 'key:',k)
            print('  ACTUAL:\n', pformat(mexico_db[sid][k]))
            print('  EXPECTED:\n', pformat(expected_mexico_db[sid][k]))
            break
if len(mexico_db) > len(expected_mexico_db):
    print('ERROR! There are more states than expected!')
    print('  ACTUAL:\n', len(mexico_db))
    print('  EXPECTED:\n', len(expected_mexico_db))

show_attacks

Given a state_code and , display a chart of the attack counts over the years.

  • normalize the height so to have all charts as high as the maximum possible attack count in the db

  • show vertical dashed lines in proximity of election years (use linestyle='dashed'), using the same color

  • you are allowed to use constants for years

  • make sure vertical lines on borders are clearly visible and separated from borders by setting proper limits

  • remember to also print the maximum possible attack count in the db

Show solution
[6]:
%matplotlib inline
import matplotlib.pyplot as plt

def show_attacks(state_code, mexdb):
    raise Exception('TODO IMPLEMENT ME !')

show_attacks('12', mexico_db)  # Guerrero
max attacks happened in any state: 39
../../../_images/exams_2021-11-12_solutions_exam-2021-11-12-sol_18_1.png
[7]:
show_attacks('16', mexico_db)   # Michoacan
max attacks happened in any state: 39
../../../_images/exams_2021-11-12_solutions_exam-2021-11-12-sol_19_1.png

cartels

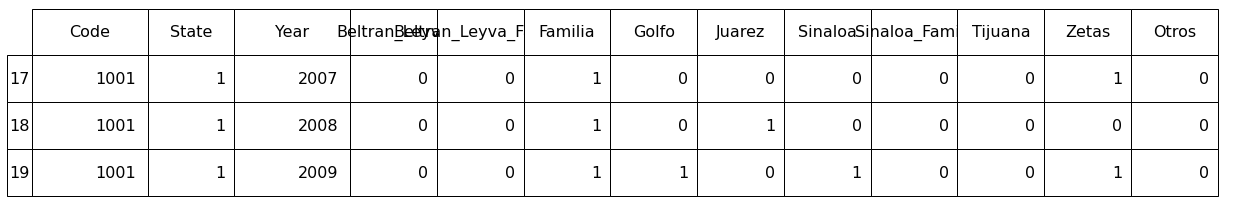

In the file CosciaRios2012_DataBase.csv are listed attacks performed by criminal organizations (cartels) in various years. For each row, the columns from 3-12 have a 1 if the corresponding cartel named in the header was involved in the attack, and 0 otherwise. Example:

../../../_images/exams_2021-11-12_solutions_exam-2021-11-12-sol_21_0.png

Write a function which given a filename and a year, processes the dataset and RETURN a dictionary mapping cartel names to a list of sorted states (no duplicates) where the cartel performed attacks in the given year.

  • use a csv.reader with utf8 encoding

  • pick state code from State column and state names from previous mexico_db (you only need names) - if missing put state code (i.e. 09)

  • NOTE: Sinaloa is a special case, since it is both a state and a cartel.

Show solution
[9]:
import csv
def cartels(filename, mexdb, year):
    raise Exception('TODO IMPLEMENT ME !')

cartels2003 = cartels('CosciaRios2012_DataBase.csv', mexico_db, 2003)
from pprint import pprint
pprint(cartels2003, width=190)

assert cartels2003['Beltran_Leyva'] == ['Colima', 'Morelos', 'Sinaloa']
assert cartels2003['Otros'] ==  ['Veracruz']
assert cartels2003['Zetas'] ==  ['Campeche', 'Guanajuato', 'Jalisco', 'Mexico', 'Nuevo Leon', 'Sinaloa', 'Tamaulipas', 'Veracruz', 'Yucatan']
{'Beltran_Leyva': ['Colima', 'Morelos', 'Sinaloa'],
 'Beltran_Leyva_Family': [],
 'Familia': [],
 'Golfo': ['Campeche', 'Chihuahua', 'Coahuila', 'Durango', 'Mexico', 'Nuevo Leon', 'San Luis Potosi', 'Tamaulipas', 'Veracruz', 'Yucatan'],
 'Juarez': ['Baja California', 'Chihuahua', 'Coahuila', 'Colima', 'Durango', 'Guerrero', 'Jalisco', 'Sinaloa', 'Tamaulipas'],
 'Otros': ['Veracruz'],
 'Sinaloa': ['Chiapas', 'Colima', 'Jalisco', 'Mexico', 'Nayarit', 'Nuevo Leon', 'Sinaloa', 'Sonora', 'Tamaulipas'],
 'Sinaloa_Family': ['Guerrero'],
 'Tijuana': ['Aguascalientes', 'Baja California', 'Chiapas', 'Chihuahua', 'Coahuila', 'Guerrero', 'Jalisco', 'Mexico', 'Michoacan', 'Nuevo Leon', 'Puebla', 'Sinaloa', 'Sonora'],
 'Zetas': ['Campeche', 'Guanajuato', 'Jalisco', 'Mexico', 'Nuevo Leon', 'Sinaloa', 'Tamaulipas', 'Veracruz', 'Yucatan']}
[10]:
# further tests
expected2003 = {
 'Beltran_Leyva': ['Colima', 'Morelos', 'Sinaloa'],
 'Beltran_Leyva_Family':[],
 'Familia': [],
 'Golfo':   ['Campeche', 'Chihuahua', 'Coahuila', 'Durango', 'Mexico', 'Nuevo Leon', 'San Luis Potosi', 'Tamaulipas', 'Veracruz', 'Yucatan'],
 'Juarez':  ['Baja California', 'Chihuahua', 'Coahuila', 'Colima', 'Durango', 'Guerrero', 'Jalisco', 'Sinaloa', 'Tamaulipas'],
 'Otros':   ['Veracruz'],
 'Sinaloa': ['Chiapas', 'Colima', 'Jalisco', 'Mexico', 'Nayarit', 'Nuevo Leon', 'Sinaloa', 'Sonora', 'Tamaulipas'],
 'Sinaloa_Family': ['Guerrero'],
 'Tijuana': ['Aguascalientes', 'Baja California', 'Chiapas', 'Chihuahua', 'Coahuila', 'Guerrero', 'Jalisco', 'Mexico', 'Michoacan', 'Nuevo Leon', 'Puebla', 'Sinaloa', 'Sonora'],
 'Zetas':   ['Campeche', 'Guanajuato', 'Jalisco', 'Mexico', 'Nuevo Leon', 'Sinaloa', 'Tamaulipas', 'Veracruz', 'Yucatan']
}

assert cartels2003 == expected2003

expected1999 = {
    'Beltran_Leyva': [],
    'Beltran_Leyva_Family': [],
    'Familia': [],
    'Golfo':   ['Baja California', 'Guanajuato', 'Nuevo Leon', 'Puebla'],
    'Juarez':  ['Baja California', 'Chihuahua', 'Durango', 'Tamaulipas', 'Veracruz'],
    'Sinaloa': ['Jalisco', 'Veracruz'],
    'Sinaloa_Family': [],
    'Tijuana': ['Baja California', 'Campeche', 'Coahuila', 'Nuevo Leon', 'Sonora', 'Tamaulipas', 'Yucatan'],
    'Zetas':   ['Baja California', 'Mexico', 'Morelos', 'Sinaloa', 'Sonora'],
    'Otros':   []
}

cartels1999 = cartels('CosciaRios2012_DataBase.csv', mexico_db, 1999)
assert cartels1999 == expected1999
