Exam - Mon 10, Feb 2020

Scientific Programming - Data Science @ University of Trento

Download exercises and solutions

Introduction

• Taking part to this exam erases any vote you had before

What to do

1. Download sciprog-ds-2020-02-10-exam.zip and extract it on your desktop. Folder content should be like this:

sciprog-ds-2020-02-10-FIRSTNAME-LASTNAME-ID
    exam-2020-02-10.ipynb
    B1-theory.txt
    B2_italian_queue_v2.py
    B2_italian_queue_v2_test.py
    jupman.py
    sciprog.py

2. Rename sciprog-ds-2020-02-10-FIRSTNAME-LASTNAME-ID folder: put your name, lastname an id number, like sciprog-ds-2020-02-10-john-doe-432432

From now on, you will be editing the files in that folder. At the end of the exam, that is what will be evaluated.

3. Edit the files following the instructions in this worksheet for each exercise. Every exercise should take max 25 mins. If it takes longer, leave it and try another exercise.

4. When done:

• if you have unitn login: zip and send to examina.icts.unitn.it/studente

• If you don’t have unitn login: tell instructors and we will download your work manually

Part A - Wordnet

NOTICE: this part of the exam was ported to softpython website

There you can find a more curated version (notice it may be longer than here)

Open Jupyter and start editing this notebook exam-2020-02-10.ipynb

WordNet® is a large lexical database of English. Nouns, verbs, adjectives and adverbs are grouped into sets of cognitive synonyms (synsets), each expressing a distinct concept. Synsets are interlinked by means of semantic relations. The resulting network of related words and concepts can be navigated with the browser. WordNet is also freely and publicly available for download, making it a useful tool for computational linguistics and natural language processing. Princeton University “About WordNet.” WordNet. Princeton University. 2010

In Python there are specialized libraries to read WordNet like NLTK, but for the sake of this exercise, you will parse the noun database as a text file which can be read line by line.

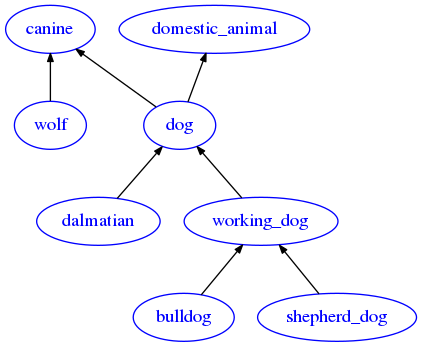

We will focus on names and how they are linked by IS A relation, for example, a dalmatian IS A dog (IS A is also called hypernym relation)

A1 parse_db

First, you will begin with parsing an excerpt of wordnet data/dogs.noun, which is a noun database shown here in its entirety.

According to documentation, a noun database begins with several lines containing a copyright notice, version number, and license agreement: these lines all begin with two spaces and the line number like

1 This software and database is being provided to you, the LICENSEE, by
2 Princeton University under the following license.  By obtaining, using
3 and/or copying this software and database, you agree that you have

Afterwards, each of following lines describe a noun synset, that is, a unique concept identified by a number called synset_offset.

• each synset can have many words to represent it - for example, the noun synset 02112993 has 03 (w_cnt) words dalmatian coach_dog, carriage_dog.

• a synset can be linked to other ones by relations. The dalmatian synset is linked to 002 (p_cnt) other synsets: to synset 02086723 by the @ relation, and to synset 02113184 by the ~ relation. For our purposes, you can focus on the @ symbol which means IS A relation (also called hypernym). If you search for a line starting with 02086723, you will see it is the synset for dog, so Wordnet is telling us a dalmatian IS A dog.

WARNING 1: lines can be quite long so if they appear to span multiple lines don’t be fooled : remember each name definition only occupies one single line with no carriage returns!

WARNING 2: there are no empty lines between the synsets, here you see them just to visually separate the text blobs

1 This software and database is being provided to you, the LICENSEE, by
2 Princeton University under the following license.  By obtaining, using
3 and/or copying this software and database, you agree that you have
4 read, understood, and will comply with these terms and conditions.:
5
6 Permission to use, copy, modify and distribute this software and
7 database and its documentation for any purpose and without fee or
8 royalty is hereby granted, provided that you agree to comply with
9 the following copyright notice and statements, including the disclaimer,
10 and that the same appear on ALL copies of the software, database and
11 documentation, including modifications that you make for internal
12 use or for distribution.
13
14 WordNet 3.1 Copyright 2011 by Princeton University.  All rights reserved.
15
16 THIS SOFTWARE AND DATABASE IS PROVIDED "AS IS" AND PRINCETON
17 UNIVERSITY MAKES NO REPRESENTATIONS OR WARRANTIES, EXPRESS OR
18 IMPLIED.  BY WAY OF EXAMPLE, BUT NOT LIMITATION, PRINCETON
19 UNIVERSITY MAKES NO REPRESENTATIONS OR WARRANTIES OF MERCHANT-
20 ABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE OR THAT THE USE
21 OF THE LICENSED SOFTWARE, DATABASE OR DOCUMENTATION WILL NOT
22 INFRINGE ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADEMARKS OR
23 OTHER RIGHTS.
24
25 The name of Princeton University or Princeton may not be used in
26 advertising or publicity pertaining to distribution of the software
27 and/or database.  Title to copyright in this software, database and
28 any associated documentation shall at all times remain with
29 Princeton University and LICENSEE agrees to preserve same.

01320032 05 n 02 domestic_animal 0 domesticated_animal 0 007 @ 00015568 n 0000 ~ 01320304 n 0000 ~ 01320544 n 0000 ~ 01320872 n 0000 ~ 02086723 n 0000 ~ 02124460 n 0000 ~ 02125232 n 0000 | any of various animals that have been tamed and made fit for a human environment

02085998 05 n 02 canine 0 canid 0 011 @ 02077948 n 0000 #m 02085690 n 0000 + 02688440 a 0101 ~ 02086324 n 0000 ~ 02086723 n 0000 ~ 02116752 n 0000 ~ 02117748 n 0000 ~ 02117987 n 0000 ~ 02119787 n 0000 ~ 02120985 n 0000 %p 02442560 n 0000 | any of various fissiped mammals with nonretractile claws and typically long muzzles

02086723 05 n 03 dog 0 domestic_dog 0 Canis_familiaris 0 023 @ 02085998 n 0000 @ 01320032 n 0000 #m 02086515 n 0000 #m 08011383 n 0000 ~ 01325095 n 0000 ~ 02087384 n 0000 ~ 02087513 n 0000 ~ 02087924 n 0000 ~ 02088026 n 0000 ~ 02089774 n 0000 ~ 02106058 n 0000 ~ 02112993 n 0000 ~ 02113458 n 0000 ~ 02113610 n 0000 ~ 02113781 n 0000 ~ 02113929 n 0000 ~ 02114152 n 0000 ~ 02114278 n 0000 ~ 02115149 n 0000 ~ 02115478 n 0000 ~ 02115987 n 0000 ~ 02116630 n 0000 %p 02161498 n 0000 | a member of the genus Canis (probably descended from the common wolf) that has been domesticated by man since prehistoric times; occurs in many breeds; “the dog barked all night”

02106058 05 n 01 working_dog 0 016 @ 02086723 n 0000 ~ 02106493 n 0000 ~ 02107175 n 0000 ~ 02109506 n 0000 ~ 02110072 n 0000 ~ 02110741 n 0000 ~ 02110906 n 0000 ~ 02111074 n 0000 ~ 02111324 n 0000 ~ 02111699 n 0000 ~ 02111802 n 0000 ~ 02112043 n 0000 ~ 02112177 n 0000 ~ 02112339 n 0000 ~ 02112463 n 0000 ~ 02112613 n 0000 | any of several breeds of usually large powerful dogs bred to work as draft animals and guard and guide dogs

02112993 05 n 03 dalmatian 0 coach_dog 0 carriage_dog 0 002 @ 02086723 n 0000 ~ 02113184 n 0000 | a large breed having a smooth white coat with black or brown spots; originated in Dalmatia

02107175 05 n 03 shepherd_dog 0 sheepdog 0 sheep_dog 0 012 @ 02106058 n 0000 ~ 02107534 n 0000 ~ 02107903 n 0000 ~ 02108064 n 0000 ~ 02108157 n 0000 ~ 02108293 n 0000 ~ 02108507 n 0000 ~ 02108682 n 0000 ~ 02108818 n 0000 ~ 02109034 n 0000 ~ 02109202 n 0000 ~ 02109314 n 0000 | any of various usually long-haired breeds of dog reared to herd and guard sheep

02111324 05 n 02 bulldog 0 English_bulldog 0 003 @ 02106058 n 0000 + 01121448 v 0101 ~ 02111567 n 0000 | a sturdy thickset short-haired breed with a large head and strong undershot lower jaw; developed originally in England for bull baiting

02116752 05 n 01 wolf 0 007 @ 02085998 n 0000 #m 02086515 n 0000 ~ 01324999 n 0000 ~ 02117019 n 0000 ~ 02117200 n 0000 ~ 02117364 n 0000 ~ 02117507 n 0000 | any of various predatory carnivorous canine mammals of North America and Eurasia that usually hunt in packs

Field description

While parsing, skip the copyright notice. Then, each name definition follows the following format:

synset_offset lex_filenum ss_type w_cnt word lex_id [word  lex_id...] p_cnt [ptr...] | gloss

• synset_offset: Number identifying the synset, for example 02112993. MUST be converted to a Python int

• lex_filenum: Two digit decimal integer corresponding to the lexicographer file name containing the synset, for example 03. MUST be converted to a Python int

• ss_type: One character code indicating the synset type, store it as a string.

• w_cnt: Two digit hexadecimal integer indicating the number of words in the synset, for example b3. MUST be converted to a Python int.

WARNING: w_cnt is expressed as hexadecimal!

To convert an hexadecimal number like b3 to a decimal int you will need to specify the base 16 like in int('b3',16) which produces the decimal integer 179.

• Afterwards, there will be w_cnt words, each represented by two fields (for example, dalmatian 0). You MUST store these fields into a Python list called words containing a dictionary for each word, having these fields:

  • word: ASCII form of a word (example: dalmatian), with spaces replaced by underscore characters (_)

  • lex_id: One digit hexadecimal integer (example: 0) that MUST be converted to a Python int

WARNING: lex_id is expressed as hexadecimal!

To convert an hexadecimal number like b3 to a decimal int you will need to specify the base 16 like in int('b3',16) which produces the decimal integer 179.

• p_cnt: Three digit decimal integer indicating the number of pointers (that is, relations like for example IS A) from this synset to other synsets. MUST be converted to a Python int

WARNING: differently from w_cnt, the value p_cnt is expressed as decimal!

• Afterwards, there will be p_cnt pointers, each represented by four fields pointer_symbol synset_offset pos source/target (for example, @ 02086723 n 0000). You MUST store these fields into a Python list called ptrs containing a dictionary for each pointer, having these fields:

  • pointer_symbol: a symbol indicating the type of relation, for example @ (which represents IS A relation)

  • synset_offset : the identifier of the target synset, for example 02086723. You MUST convert this to a Python int

  • pos: just parse it as a string (we will not use it)

  • source/target: just parse it as a string (we will not use it)

WARNING: DO NOT assume first pointer is an @ (IS A) !!

In the full database, the root synset entity can’t possibly have a parent synset:

0        1  2 3  4      5 6   7 8        9 10   11 12      13 14   15 16       17 18
00001740 03 n 01 entity 0 003 ~ 00001930 n 0000 ~ 00002137 n  0000 ~  04431553 n  0000 | that which is perceived or known or inferred to have its own distinct existence (living or nonliving)

• gloss: Each synset contains a gloss (that is, a description). A gloss is represented as a vertical bar (|), followed by a text string that continues until the end of the line. For example, a large breed having a smooth white coat with black or brown spots; originated in Dalmatia

implement parse_db

Show solution

def parse_db(filename):
    """ Parses noun database filename as a text file and RETURN a dictionary containing
        all the synset found. Each key will be a synset_offset mapping to a dictionary
        holding the fields of the correspoing synset. See next printout for an example.
    """


    ret = {}
    with open(filename, encoding='utf-8') as f:
        line=f.readline()
        r = 0
        while line.startswith('  '):
            line=f.readline()
            #print(line)
            r += 1


        while line != "":
            i = 0

            d = {}

            params  = line.split('|')[0].split(' ')

            d['synset_offset'] = int(params[0])    # '00001740'
            d['lex_filenum'] = int(params[1])      # '03'
            d['ss_type'] = params[2]          # 'n'
            # WARNING: HERE THE STRING REPRESENT A NUMBER IN *HEXADECIMAL* FORMAT,
            #          AND WE WANT TO STORE AN *INTEGER*
            #          TO DO THE CONVERSION PROPERLY, YOU NEED TO USE int(my_string, 16)
            d['w_cnt'] = int(params[3], 16)       # 'b3' -> 179
            d['words'] = []
            i = 4
            for j in range(d['w_cnt']):
                wd = {
                      'word'  : params[i],     # 'entity'
                      'lex_id': int(params[i + 1],16), # '0'
                }
                d['words'].append(wd)
                i += 2
               #
            # WARNING: HERE THE STRING REPRESENT A NUMBER IN *DECIMAL* FORMAT,
            #          AND WE WANT TO STORE AN *INTEGER*
            #          TO DO THE CONVERSION PROPERLY, YOU NEED TO USE int(my_string)
            d['p_cnt'] = int(params[i])       # '003' -> 3
            d['ptrs'] = []
            i += 1
            for j in range(d['p_cnt']):
                ptr =  {
                         'pointer_symbol': params[i ],    # '~'
                         'synset_offset': int(params[i + 1]),  # '00001930'
                         'pos': params[i + 2],           # 'n'
                         'source_target':params[i + 3],  # '0000'
                       }
                d['ptrs'].append(ptr)
                i += 4


            d['gloss'] = line.split('|')[1]

            ret[d['synset_offset']] = d
            i += 1
            line=f.readline()
        return ret

def parse_db(filename):
    """ Parses noun database filename as a text file and RETURN a dictionary containing
        all the synset found. Each key will be a synset_offset mapping to a dictionary
        holding the fields of the correspoing synset. See next printout for an example.
    """
    raise Exception('TODO IMPLEMENT ME !')

dogs_db = parse_db('data/dogs.noun')

from pprint import pprint
pprint(dogs_db)

{1320032: {'gloss': ' any of various animals that have been tamed and made fit '
                    'for a human environment\n',
           'lex_filenum': 5,
           'p_cnt': 7,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 15568},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 1320304},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 1320544},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 1320872},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2086723},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2124460},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2125232}],
           'ss_type': 'n',
           'synset_offset': 1320032,
           'w_cnt': 2,
           'words': [{'lex_id': 0, 'word': 'domestic_animal'},
                     {'lex_id': 0, 'word': 'domesticated_animal'}]},
 2085998: {'gloss': ' any of various fissiped mammals with nonretractile claws '
                    'and typically long muzzles  \n',
           'lex_filenum': 5,
           'p_cnt': 11,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2077948},
                    {'pointer_symbol': '#m',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2085690},
                    {'pointer_symbol': '+',
                     'pos': 'a',
                     'source_target': '0101',
                     'synset_offset': 2688440},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2086324},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2086723},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2116752},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2117748},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2117987},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2119787},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2120985},
                    {'pointer_symbol': '%p',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2442560}],
           'ss_type': 'n',
           'synset_offset': 2085998,
           'w_cnt': 2,
           'words': [{'lex_id': 0, 'word': 'canine'},
                     {'lex_id': 0, 'word': 'canid'}]},
 2086723: {'gloss': ' a member of the genus Canis (probably descended from the '
                    'common wolf) that has been domesticated by man since '
                    'prehistoric times; occurs in many breeds; "the dog barked '
                    'all night" \n',
           'lex_filenum': 5,
           'p_cnt': 23,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2085998},
                    {'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 1320032},
                    {'pointer_symbol': '#m',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2086515},
                    {'pointer_symbol': '#m',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 8011383},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 1325095},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2087384},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2087513},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2087924},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2088026},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2089774},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2106058},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2112993},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2113458},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2113610},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2113781},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2113929},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2114152},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2114278},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2115149},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2115478},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2115987},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2116630},
                    {'pointer_symbol': '%p',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2161498}],
           'ss_type': 'n',
           'synset_offset': 2086723,
           'w_cnt': 3,
           'words': [{'lex_id': 0, 'word': 'dog'},
                     {'lex_id': 0, 'word': 'domestic_dog'},
                     {'lex_id': 0, 'word': 'Canis_familiaris'}]},
 2106058: {'gloss': ' any of several breeds of usually large powerful dogs '
                    'bred to work as draft animals and guard and guide '
                    'dogs  \n',
           'lex_filenum': 5,
           'p_cnt': 16,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2086723},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2106493},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2107175},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2109506},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2110072},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2110741},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2110906},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2111074},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2111324},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2111699},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2111802},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2112043},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2112177},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2112339},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2112463},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2112613}],
           'ss_type': 'n',
           'synset_offset': 2106058,
           'w_cnt': 1,
           'words': [{'lex_id': 0, 'word': 'working_dog'}]},
 2107175: {'gloss': ' any of various usually long-haired breeds of dog reared '
                    'to herd and guard sheep\n',
           'lex_filenum': 5,
           'p_cnt': 12,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2106058},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2107534},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2107903},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2108064},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2108157},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2108293},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2108507},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2108682},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2108818},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2109034},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2109202},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2109314}],
           'ss_type': 'n',
           'synset_offset': 2107175,
           'w_cnt': 3,
           'words': [{'lex_id': 0, 'word': 'shepherd_dog'},
                     {'lex_id': 0, 'word': 'sheepdog'},
                     {'lex_id': 0, 'word': 'sheep_dog'}]},
 2111324: {'gloss': ' a sturdy thickset short-haired breed with a large head '
                    'and strong undershot lower jaw; developed originally in '
                    'England for bull baiting  \n',
           'lex_filenum': 5,
           'p_cnt': 3,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2106058},
                    {'pointer_symbol': '+',
                     'pos': 'v',
                     'source_target': '0101',
                     'synset_offset': 1121448},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2111567}],
           'ss_type': 'n',
           'synset_offset': 2111324,
           'w_cnt': 2,
           'words': [{'lex_id': 0, 'word': 'bulldog'},
                     {'lex_id': 0, 'word': 'English_bulldog'}]},
 2112993: {'gloss': ' a large breed having a smooth white coat with black or '
                    'brown spots; originated in Dalmatia  \n',
           'lex_filenum': 5,
           'p_cnt': 2,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2086723},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2113184}],
           'ss_type': 'n',
           'synset_offset': 2112993,
           'w_cnt': 3,
           'words': [{'lex_id': 0, 'word': 'dalmatian'},
                     {'lex_id': 0, 'word': 'coach_dog'},
                     {'lex_id': 0, 'word': 'carriage_dog'}]},
 2116752: {'gloss': ' any of various predatory carnivorous canine mammals of '
                    'North America and Eurasia that usually hunt in packs  \n',
           'lex_filenum': 5,
           'p_cnt': 7,
           'ptrs': [{'pointer_symbol': '@',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2085998},
                    {'pointer_symbol': '#m',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2086515},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 1324999},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2117019},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2117200},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2117364},
                    {'pointer_symbol': '~',
                     'pos': 'n',
                     'source_target': '0000',
                     'synset_offset': 2117507}],
           'ss_type': 'n',
           'synset_offset': 2116752,
           'w_cnt': 1,
           'words': [{'lex_id': 0, 'word': 'wolf'}]}}

A2 to_adj

Implement a function to_adj which takes the parsed db and RETURN a graph-like data structure in adjacency list format. Each node represent a synset - as label use the first word of the synset. A node is linked to another one if there is a IS A relation among the nodes, so use the @ symbol to filter the hypernyms.

IMPORTANT: not all linked synsets are present in the dogs excerpt.

HINT: If you couldn’t implement the parse_db function properly, use as data the result of the previous print.

Show solution

def to_adj(db):

    ret = {}

    for d in db.values():
        targets = []
        for ptr in d['ptrs']:
            if ptr['pointer_symbol'] == '@':
                if ptr['synset_offset'] in db:
                    targets.append(db[ptr['synset_offset']]['words'][0]['word'])
                #else:
                #    targets.append(ptr['synset_offset'])
        ret[d['words'][0]['word']] = targets
    return ret


dogs_graph = to_adj(dogs_db)
from pprint import pprint
pprint(dogs_graph)

{'bulldog': ['working_dog'],
 'canine': [],
 'dalmatian': ['dog'],
 'dog': ['canine', 'domestic_animal'],
 'domestic_animal': [],
 'shepherd_dog': ['working_dog'],
 'wolf': ['canine'],
 'working_dog': ['dog']}

def to_adj(db):
    raise Exception('TODO IMPLEMENT ME !')

dogs_graph = to_adj(dogs_db)
from pprint import pprint
pprint(dogs_graph)

{'bulldog': ['working_dog'],
 'canine': [],
 'dalmatian': ['dog'],
 'dog': ['canine', 'domestic_animal'],
 'domestic_animal': [],
 'shepherd_dog': ['working_dog'],
 'wolf': ['canine'],
 'working_dog': ['dog']}

Check results

If parsing is right, you should get the following graph

DO NOT implement any drawing function, this is just for checking your results

from sciprog import draw_adj
draw_adj(dogs_graph, options={'graph':{'rankdir':'BT'}})

A.3 hist

You are given a dictionary mapping each relation symbol (i.e. @) to its description (i.e. Hypernym).

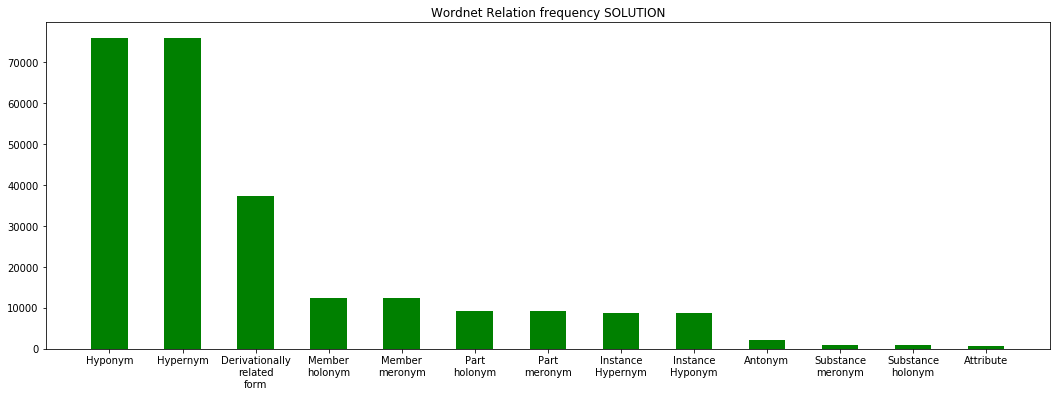

Implement a function to draw the histogram of relation frequencies found in the relation links of the entire Wordnet, which can be loaded from the file data/data.noun. If you previously implemented parse_db in a correct way, you should be able to load the whole db. If for any reasons you can’t, try at least to draw the histogram of frequencies found in dogs_db

• sort the histogram from greatest to lowest frequency

• do not count the relations containing the word ‘domain’ inside (upper/lowercase)

• do not count the ‘\’ relation

• display the relation names nicely, adding newlines if necessary

Show solution

relation_names = {
    '!':'Antonym',
    '@':'Hypernym',
    '@i':'Instance Hypernym',
    '~':'Hyponym',
    '~i':'Instance Hyponym',
    '#m':'Member holonym',
    '#s':'Substance holonym',
    '#p':'Part holonym',
    '%m':'Member meronym',
    '%s':'Substance meronym',
    '%p':'Part meronym',
    '=':'Attribute',
    '+':'Derivationally related form',
    ';c':'Domain of synset - TOPIC',           # DISCARD
    '-c':'Member of this domain - TOPIC',      # DISCARD
    ';r':'Domain of synset - REGION',          # DISCARD
    '-r':'Member of this domain - REGION',     # DISCARD
    ';u':'Domain of synset - USAGE',           # DISCARD
    '-u':'Member of this domain - USAGE',      # DISCARD
    '\\': 'Pertainym (pertains to noun)'       # DISCARD
}

def draw_hist(db):

    hist = {}
    for d in db.values():
        for ptr in d['ptrs']:
            ps = ptr['pointer_symbol']
            if 'domain' not in relation_names[ps].lower() and ps != '\\':
                if ps in hist:
                    hist[ps] += 1
                else:
                    hist[ps] = 0

    pprint(hist)

    import numpy as np
    import matplotlib.pyplot as plt

    xs = list(range(len(hist.keys())))
    coords = [(x,hist[x]) for x in hist.keys()]
    coords.sort(key=lambda c: c[1], reverse=True)
    ys = [c[1] for c in coords]

    fig = plt.figure(figsize=(18,6))

    plt.bar(xs, ys,
            0.5,             # the width of the bars
            color='green',   # someone suggested the default blue color is depressing, so let's put green
            align='center')  # bars are centered on the xtick

    plt.title('Wordnet Relation frequency SOLUTION')
    xticks = [relation_names[c[0]].replace(' ', '\n') for c in coords]
    plt.xticks(xs,xticks)

    plt.show()

relation_names = {
    '!':'Antonym',
    '@':'Hypernym',
    '@i':'Instance Hypernym',
    '~':'Hyponym',
    '~i':'Instance Hyponym',
    '#m':'Member holonym',
    '#s':'Substance holonym',
    '#p':'Part holonym',
    '%m':'Member meronym',
    '%s':'Substance meronym',
    '%p':'Part meronym',
    '=':'Attribute',
    '+':'Derivationally related form',
    ';c':'Domain of synset - TOPIC',           # DISCARD
    '-c':'Member of this domain - TOPIC',      # DISCARD
    ';r':'Domain of synset - REGION',          # DISCARD
    '-r':'Member of this domain - REGION',     # DISCARD
    ';u':'Domain of synset - USAGE',           # DISCARD
    '-u':'Member of this domain - USAGE',      # DISCARD
    '\\': 'Pertainym (pertains to noun)'       # DISCARD
}

def draw_hist(db):
    raise Exception('TODO IMPLEMENT ME !')

wordnet = parse_db('data/data.noun')
draw_hist(wordnet)

{'!': 2153,
 '#m': 12287,
 '#p': 9110,
 '#s': 796,
 '%m': 12287,
 '%p': 9110,
 '%s': 796,
 '+': 37235,
 '=': 638,
 '@': 75915,
 '@i': 8588,
 '~': 75915,
 '~i': 8588}

Part B

B1 Theory

Write the solution in separate ``theory.txt`` file

B1.1 complexity

Given a list 𝐿 of 𝑛 elements, please compute the asymptotic computational complexity of the following function, explaining your reasoning. Any ideas on how to improve the complexity of this code?

def my_fun(L):
    n = len(L)
    out = []
    for i in range(n-2):
        out.insert(0,L[i] + L[i+1] + L[i+2])
    return out

B1.2 graph visits

Briefly describe the two classic ways of visiting the nodes of a graph.

B2 ItalianQueue v2

Open a text editor and have a look at file italian_queue_v2.py

In the original v1 implementation of the ItalianQueue we’ve already seen in class, enqueue can take \(O(n)\): you will improve it by adding further indexing so it runs in \(O(1)\)

An ItalianQueue is modelled as a LinkedList with two pointers, a _head and a _tail:

• an element is enqueued scanning from _head until a matching group is found, in which case the element is inserted after (that is, at the right) of the matching group, otherwise the element is appended at the very end marked by _tail

• an element is dequeued from the _head

For this improved v2 version, you will use an additional dictionary _tails which associates to each group present in the queue the node at the tail of that group sequence. This way, instead of scanning you will be able to directly jump to insertion point.

class ItalianQueue:

    def __init__(self):
        """ Initializes the queue.

            - Complexity: O(1)
        """
        self._head = None
        self._tail = None
        self._tails = {}   #  <---- NEW  !
        self._size = 0

Example:

If we have the following situation:

data  :  a -> b -> c -> d -> e -> f -> g -> h
group :  x    x    y    y    y    z    z    z
         ^    ^              ^              ^
         |    |              |              |
         | _tails[x]      _tails[y]      _tails[z]
         |                                  |
       _head                             _tail

By calling

q.enqueue('i','y')

We get:

data  :  a -> b -> c -> d -> e -> i -> f -> g -> h
group :  x    x    y    y    y    y    z    z    z
         ^    ^                   ^              ^
         |    |                   |              |
         | _tails[x]           _tails[y]      _tails[z]
         |                                       |
       _head                                  _tail

We can see here the complete run:

from italian_queue_v2_sol import *

q = ItalianQueue()
print(q)

ItalianQueue:

       _head: None
       _tail: None
      _tails: {}

q.enqueue('a','x')   # 'a' is the element,'x' is the group

print(q)

ItalianQueue: a
              x
       _head: Node(a,x)
       _tail: Node(a,x)
      _tails: {'x': Node(a,x),}

q.enqueue('c','y')    # 'c' belongs to new group 'y', goes to the end of the queue

print(q)

ItalianQueue: a->c
              x  y
       _head: Node(a,x)
       _tail: Node(c,y)
      _tails: {'y': Node(c,y),
               'x': Node(a,x),}

q.enqueue('d','y')    # 'd' belongs to existing group 'y', goes to the end of the group

print(q)

ItalianQueue: a->c->d
              x  y  y
       _head: Node(a,x)
       _tail: Node(d,y)
      _tails: {'y': Node(d,y),
               'x': Node(a,x),}

q.enqueue('b','x')    # 'b' belongs to existing group 'x', goes to the end of the group

print(q)

ItalianQueue: a->b->c->d
              x  x  y  y
       _head: Node(a,x)
       _tail: Node(d,y)
      _tails: {'y': Node(d,y),
               'x': Node(b,x),}

q.enqueue('f','z')    # 'f' belongs to new group, goes at the end of the queue

print(q)

ItalianQueue: a->b->c->d->f
              x  x  y  y  z
       _head: Node(a,x)
       _tail: Node(f,z)
      _tails: {'z': Node(f,z),
               'y': Node(d,y),
               'x': Node(b,x),}

q.enqueue('e','y')   # 'e' belongs to an existing group 'y', goes at the end of the group

print(q)

ItalianQueue: a->b->c->d->e->f
              x  x  y  y  y  z
       _head: Node(a,x)
       _tail: Node(f,z)
      _tails: {'z': Node(f,z),
               'y': Node(e,y),
               'x': Node(b,x),}

q.enqueue('g','z')   # 'g' belongs to an existing group 'z', goes at the end of the group

print(q)

ItalianQueue: a->b->c->d->e->f->g
              x  x  y  y  y  z  z
       _head: Node(a,x)
       _tail: Node(g,z)
      _tails: {'z': Node(g,z),
               'y': Node(e,y),
               'x': Node(b,x),}

q.enqueue('h','z')  # 'h' belongs to an existing group 'z', goes at the end of the group

print(q)

ItalianQueue: a->b->c->d->e->f->g->h
              x  x  y  y  y  z  z  z
       _head: Node(a,x)
       _tail: Node(h,z)
      _tails: {'z': Node(h,z),
               'y': Node(e,y),
               'x': Node(b,x),}

q.enqueue('h','z')  # 'h' belongs to an existing group 'z', goes at the end of the group

print(q)

ItalianQueue: a->b->c->d->e->f->g->h->h
              x  x  y  y  y  z  z  z  z
       _head: Node(a,x)
       _tail: Node(h,z)
      _tails: {'z': Node(h,z),
               'y': Node(e,y),
               'x': Node(b,x),}

q.enqueue('i','y')  # 'i' belongs to an existing group 'y', goes at the end of the group

print(q)

ItalianQueue: a->b->c->d->e->i->f->g->h->h
              x  x  y  y  y  y  z  z  z  z
       _head: Node(a,x)
       _tail: Node(h,z)
      _tails: {'z': Node(h,z),
               'y': Node(i,y),
               'x': Node(b,x),}

Dequeue is always from the head, without taking in consideration the group:

q.dequeue()

'a'

print(q)

ItalianQueue: b->c->d->e->i->f->g->h->h
              x  y  y  y  y  z  z  z  z
       _head: Node(b,x)
       _tail: Node(h,z)
      _tails: {'z': Node(h,z),
               'y': Node(i,y),
               'x': Node(b,x),}

q.dequeue()   # removed last member of group 'x', key 'x' disappears from _tails['x']

'b'

print(q)

ItalianQueue: c->d->e->i->f->g->h->h
              y  y  y  y  z  z  z  z
       _head: Node(c,y)
       _tail: Node(h,z)
      _tails: {'z': Node(h,z),
               'y': Node(i,y),}

q.dequeue()

'c'

print(q)

ItalianQueue: d->e->i->f->g->h->h
              y  y  y  z  z  z  z
       _head: Node(d,y)
       _tail: Node(h,z)
      _tails: {'z': Node(h,z),
               'y': Node(i,y),}

B2.1 enqueue

Implement enqueue:

def enqueue(self, v, g):
    """ Enqueues provided element v having group g, with the following
        criteria:

        Queue is scanned from head to find if there is another element
        with a matching group:
            - if there is, v is inserted after the last element in the
              same group sequence (so to the right of the group)
            - otherwise v is inserted at the end of the queue

        - MUST run in O(1)
    """

Testing: python3 -m unittest italian_queue_test.EnqueueTest

B2.2 dequeue

Implement dequeue:

def dequeue(self):
        """ Removes head element and returns it.

            - If the queue is empty, raises a LookupError.
            - MUST perform in O(1)
            - REMEMBER to clean unused _tails keys
        """

IMPORTANT: you can test ``dequeue`` even if you didn’t implement ``enqueue`` correctly

Testing: python3 -m unittest italian_queue_test.DequeueTest
